Cantilever type cable tray roll forming production line with punching system
Main component
Decoiler-------------------------------------------------------------------------------------------------1 SET
ML900 flatting-----------------------------------------------------------------------------------------1 SET
200 punch, punching die--------------------------------------------------------------------------1 SET
Servo feeding-----------------------------------------------------------------------------------------1 SET
Guider---------------------------------------------------------------------------------------------------1 SET
Main roll forming machine-------------------------------------------------------------------------1 SET
Follow cutting------------------------------------------------------------------------------------------1 SET
Cut-to-length part-------------------------------------------------------------------------------------1 SET
Clectrical control cabinet----------------------------------------------------------------------------1 SET
Run out table-------------------------------------------------------------------------------------------1 SET
Biref introduction
This machine is used for producing metal cable tray, the cable tray system is used for supporting insulated electrical cables which are used for power distribution, control and communications, in different area, the design of the cable tray is different, so we make different design of the machines.
Normally, we can design whatever you provide.( here I refered to the drawings of the cable tray)
Main specifications
| Name | Discription |
| Decoiler capacity | 5 T |
| Suitable inner diameter | 508mm |
| Suitable out diameter | 1000mm |
| Machine Size | Depends on the final design |
| Machine Weight | 16 T |
| Frame Materials | 350H steel |
| Middle plate type | Memorial archway type |
| Shaft diameter | 80mm |
| Shaft material | 40Cr quenched and tempered |
| Cutting System | Hydraulic Cutting |
| Main Engine power | 4 KW with cycloidal reducer |
| Groups of roller stations | 13 groups |
| Forming Speed | 15m/min |
| Pressing Thickness | 1-3mm |
| Driving mode | Gear drive |
| Pressing width | Up to the final design |
| Hydraulic motor | 3KW |
| Servo feeding power | 3.8KW |
| Transducer | SIEMENS |
| Main motor Power | 22 kw |

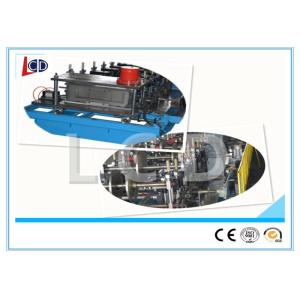

Machine pictures
