Metal Coil Sheet Embossing Machine Fully Automatic 15KW Main Motor Power

Brand Name : LCD

Model Number : MZ2017110603

Certification : ISO CE SGS

Place of Origin : Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P

Supply Ability : 20 Set /Month

Delivery Time : 45 working days after receiving 30% deposit

Packaging Details : Nude package in 20' container

Name : Embossing machine

Condition : New

Material : Steel coil

Flower design : As your requirements

Use : All kinds of metal sheets

Main motor power : 15KW

Speed : 25 meters per minute

Thickness : 3mm

Coil width : Normally 1250 mm, can be customized

Warranty : 2 years

Contact Now

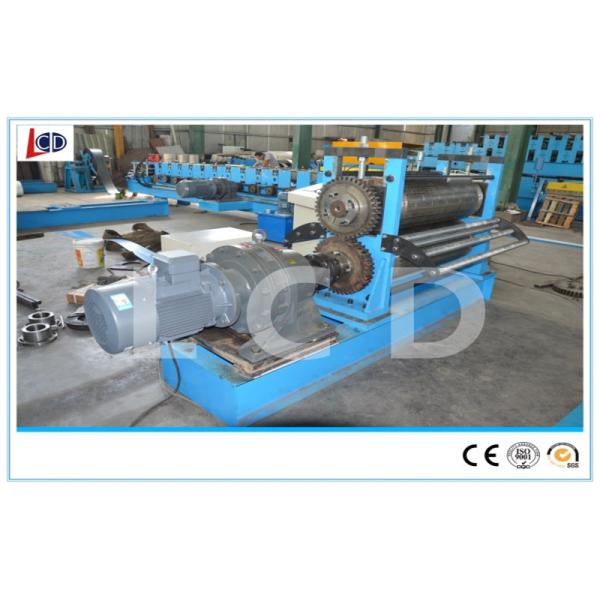

Metal coil embossing machine

Machine introduction

Metal coiling embossing machine is use for emboss the design on the coils, which can be use in gutter, roof, sandwich panel, etc. normally one machine can only do one design, you can choose quick change the rollers if you want more than one design. It is fully automatic production line, which works from the decoiler to leveling system and then go to embossing machine, last do the recoiling work.

Technical paraneters

1). Machine size:3300×1200×1500mm;

2). Embossing roller size:Φ320×1400mm;

3). Embossing type: Pearl samples;

4). Roller material: 42CrMo alloy steel

5). Hardness of rollers:Surface to be case hardened 55 to 58 Rc, Top Roll/Bottom Roll: Driven by adjustable herringbone gear set

6). Embossing mode:Up and down concave and convex roller to press;

7). Pressure regulation:Screw pressure;

8). Supported material: 0.5mm×1200mm Aluminum coil

9). Motor power: 480Volt, 60Hz, 3 phases

Brand: Siemens

10). Reducer: China World Trade Center speed reducer

11). Bearing: domestic brands in Wafangdian City

12). Working Speed:0-18m/min

13). Delivery Time: 50-60 working days

Machine pictures
